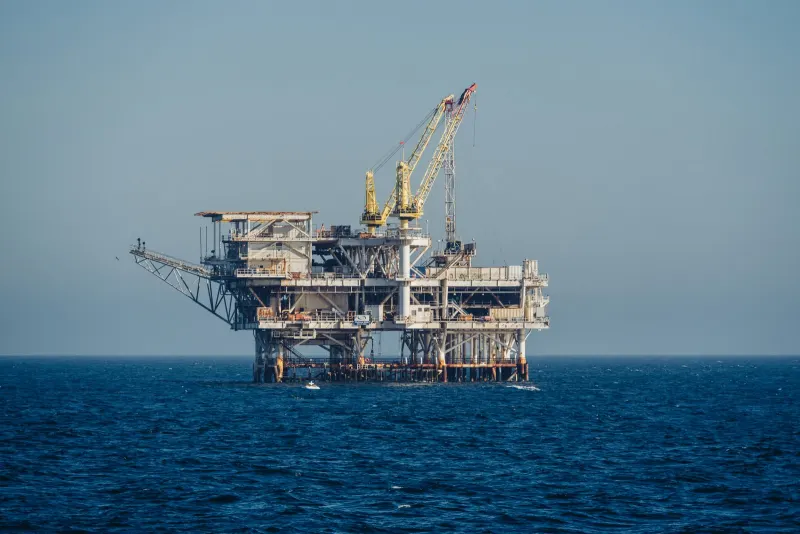

OJT Offshore Structure Design-Inplace Analysis

Part of the OJT Offshore Structure Engineer Complete Package · 2 OJT Trainings

For : Civil Engineering, Ocean Engineering, Naval Architecture

Online SACS training: analyze offshore jacket platforms in operating conditions from real projects.

6 trainings · 32 lessons · 100% online
Mentor: Heru Prasadja, ST - Senior Offshore Structure Engineer

OJT Offshore Structure Design-Inplace Analysis
Download Brochure See Packages

About this OJT

Learn straight from real projects with OJT Offshore Structure Design-Inplace Analysis

Online OJT – Jacket Inplace Analysis is a training course that specifically discusses the analysis of offshore oil drilling platform structures during operational conditions.

In this training, you will learn from scratch how to model the lower structure (jacket) and upper structure (deck) using SACS software, input various design parameters in accordance with API RPA 21th, various loads on the deck, and environmental loads such as wave, current, and wind loads, resulting in a complete jacket and deck model.

This knowledge will serve as the foundation for conducting further analyses such as Lifting, Load Out, Transportation, Seismic Analysis, etc.

After practicing a case study, you will be asked to complete a final assignment modeling another structure under guidance from a mentor.

Curriculum

What you'll learn

6 trainings · 32 lessons. Tap each part to see its lessons.

Training 1 Inplace Analysis Theory 1 lessons
Training 2 Inplace Analysis Computer Modelling 23 lessons
  1. Define Splash Zone, Minimum & Maximum Water Depth, Air Gap
  2. Define Jacket & Deck Dimension & Leveling
  3. Jacket & Deck Frame modelling
  4. Jacket Leg & Pile
  5. Conductor
  6. Vertical & Horizontal Bracing
  7. Main Deck & Cellar Deck Frame
  8. Define Steel Section
  9. Corrosion Allowance
  10. Define Member Group
  11. Define Member Offset
  12. Define Effective Length
  13. Define Span Member
  14. Define Splash Zone, Minimum & Maximum Water Depth
  15. Define Drag & Mass Coefficient (Cd & Cm)
  16. Define Marine Growth
  17. Define Of Loadings on Platform (Structure, Mechanical, Piping, EI, WOR, Crane, etc)
  18. Define Of Seastate Loadings (Current, Wind, Wave)
  19. Provisions, Contingencies Load Factor
  20. Define Operating & Extreme Loading Combinations (Minimum & Maximum Water Depth)
  21. Increased Allowable Stress
  22. Unity Check Part
  23. Setting Inplace Analysis Option
Training 3 Soil Data 1 lessons
  1. Preparation Of Soil Input Data (P-Y, T-Z, Q-Z)
Training 4 Check Result as per API RP 2A & AISC 360-16 5 lessons
  1. API/AISC Member Stress Ratios
  2. API/AISC Joint Punching Shear Stress Ratios
  3. API/AISC Joint Minimum Required Strength Ratios
  4. Deflections Checks
  5. Piles Axial Capacity And Unity Check
Training 5 Analysis Report Preparation 1 lessons
Final Project Final Exam 1 lessons
  1. Inplace Analysis For Fixed Offshore Platform (4 Leg, 79 M Water Depth)

How It Works

From first lesson to certificate

See the 6 learning steps

  1. Download all materials

  2. Watch the tutorial videos carefully

  3. Practice modeling the Inplace Jacket as shown in the videos

  4. Complete the final assignment of designing the Jacket & Deck that we provide

  5. Consult with your mentor about the final assignment via WA Group/Email.

  6. For final assignments that have been approved, a certificate will be issued

Choose a package

Complete Package Best value

OJT Offshore Structure Engineer Complete Package

The right choice if your goal is to work as Offshore Structure Engineer: no skill left behind, one single payment.

2 OJT Trainings at once: every skill you need to work as Offshore Structure Engineer.

  1. Offshore Structure Design-Inplace Analysis this OJT Rp 2.500.000
  2. Offshore Structure Design -Preservice Analysis (SACS) Rp 3.500.000

Rp 6.000.000 Rp 5.500.000 Save Rp 500.000 (8%)

Get the Complete Package
